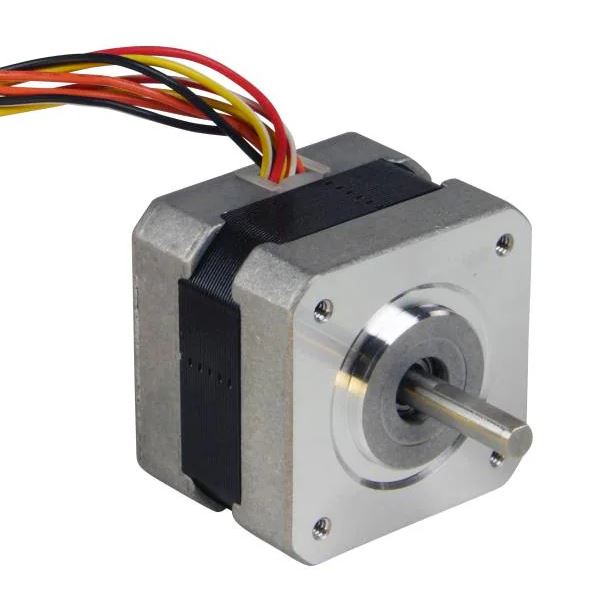

Stepper motor

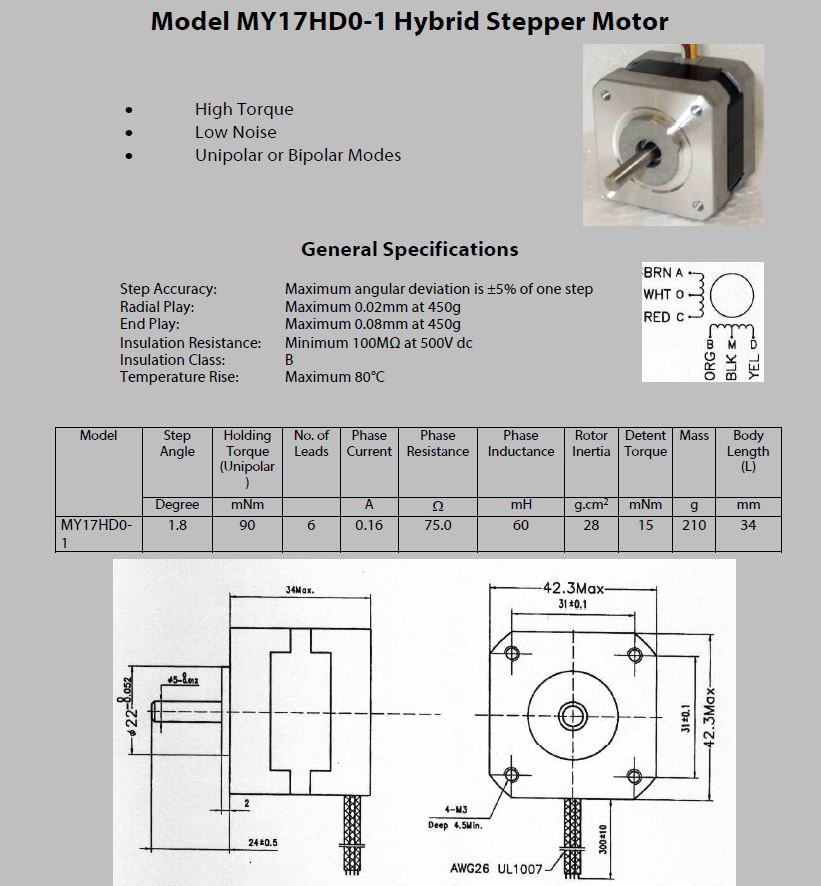

Unipolar stepper motor (can also be used in bipolar mode). Black and white are the common wires (see second image for more details).

Electrical Specification:

• Part Number:         MY17HD0-1
• Motor Type:            Unipolar or Bipolar
• Step Angle:             1.8° with 5% accuracy
• Holding Torque:       90 mNm
• Phase Resistance:  75 Ohm
• Inductance:             60 mH

Physical Specification

• Frame size:              42.3 x 42.3 mm
• Body Length:            34 mm
• Shaft Diameter:        ø 5 mm
• Shaft Length:            24 mm ± 0.5
• Number of Leads:     6
• Weight:                     210 g
