PICAXE-18M2 t4 Trainer Board

PICAXE-18M2 t4 Trainer Board


Regular price £52.00 GBP (£43.32 exc.VAT)
Regular price Sale price £52.00 GBP (£43.32 exc.VAT)
Sale Sold out
VAT is removed for export orders.

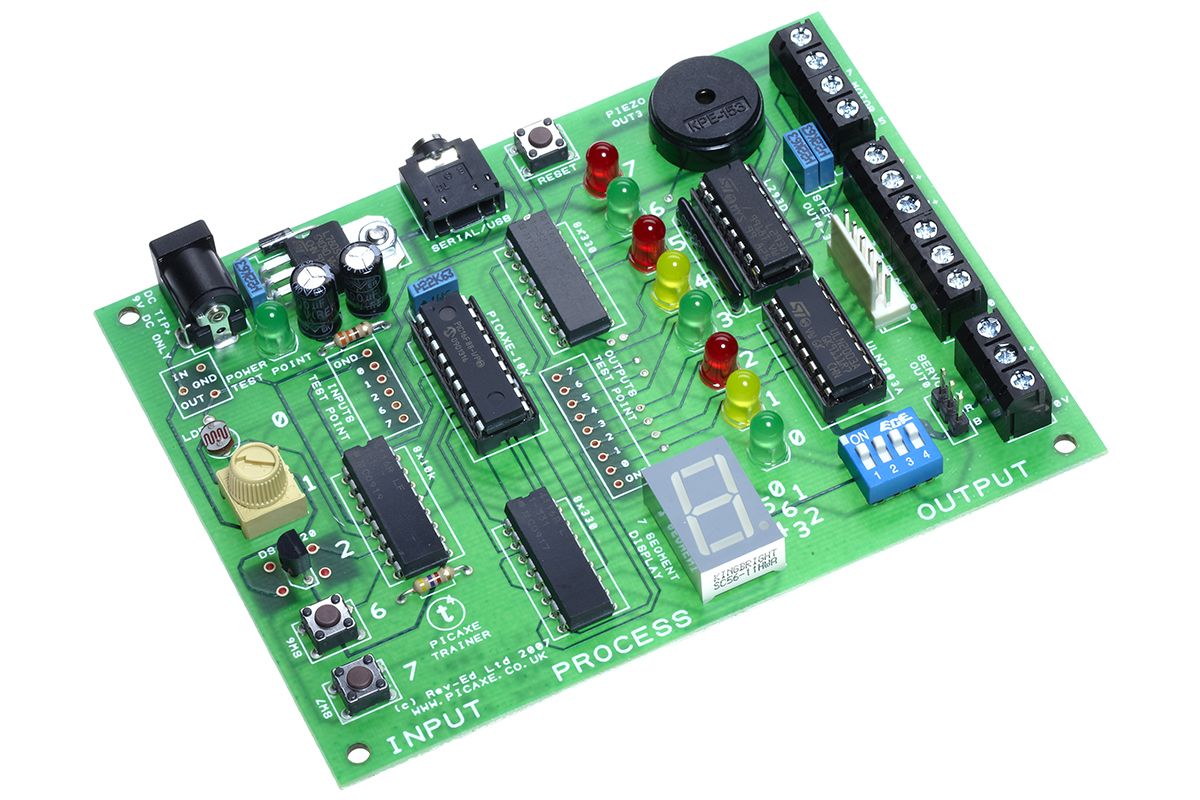

The t4 Control Training Board was designed to meet the requirements of the t4 curriculum in Ireland but has now also been adopted for many other courses too. As it is a general purpose training board it may also be used as a convenient board for self studying, and learning by experimenting.

The training board comes assembled, and is supplied with both analogue and digital inputs, as well as a range of output devices.

Key features of the t4 Control Training Board:

  • LED on each output (can be enabled/disabled)
  • 7 Segment Display output (can be enabled/disabled)
  • Piezo sounder output (can be enabled/disabled)
  • Servo output connector
  • Stepper motor output connector
  • 4 Darlington driver buffered outputs
  • 2 reversible motor driver outputs
  • DS18B20 temperature sensor input
  • Variable resistor analogue input
  • Push switch inputs
  • Input, output and power test points

Requires 9V DC power supply (part PWR009), not included.

Product Datasheet (PDF)
