PICAXE Experimenter Starter Pack

PICAXE Experimenter Starter Pack

AXE091U-CAB028

£50.00 GBP (£41.65 exc.VAT)
£50.00 GBP (£41.65 exc.VAT)
Sale Sold out
VAT is removed for export orders.
Programming Cable Style

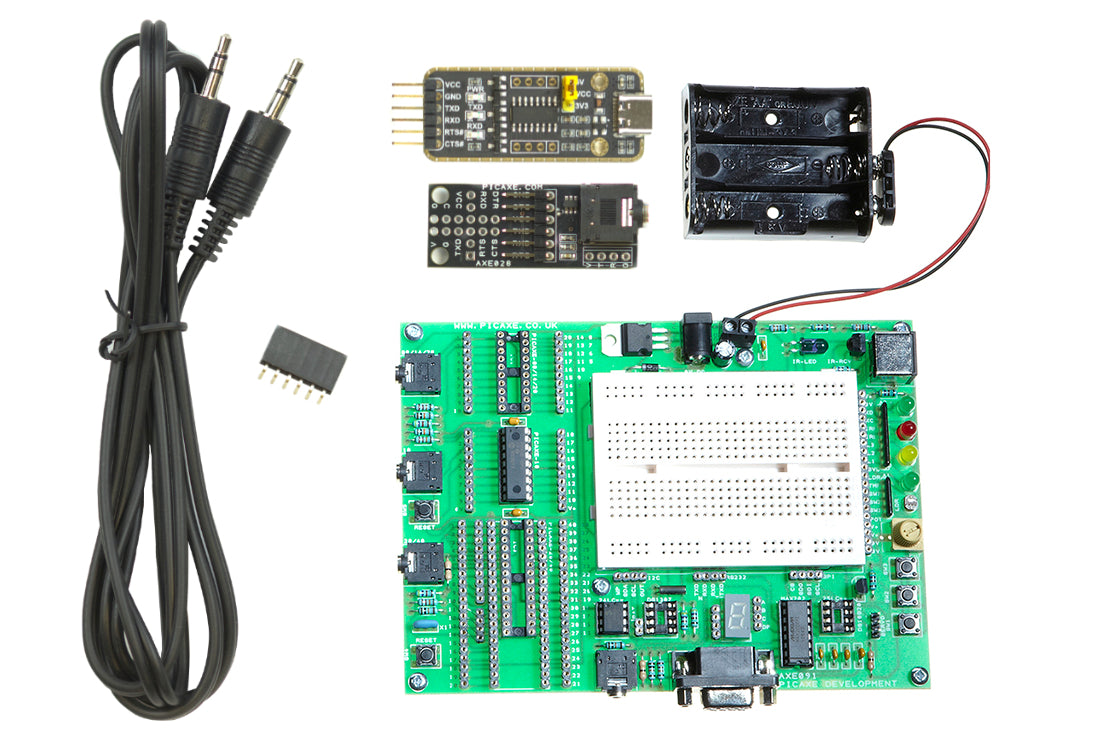

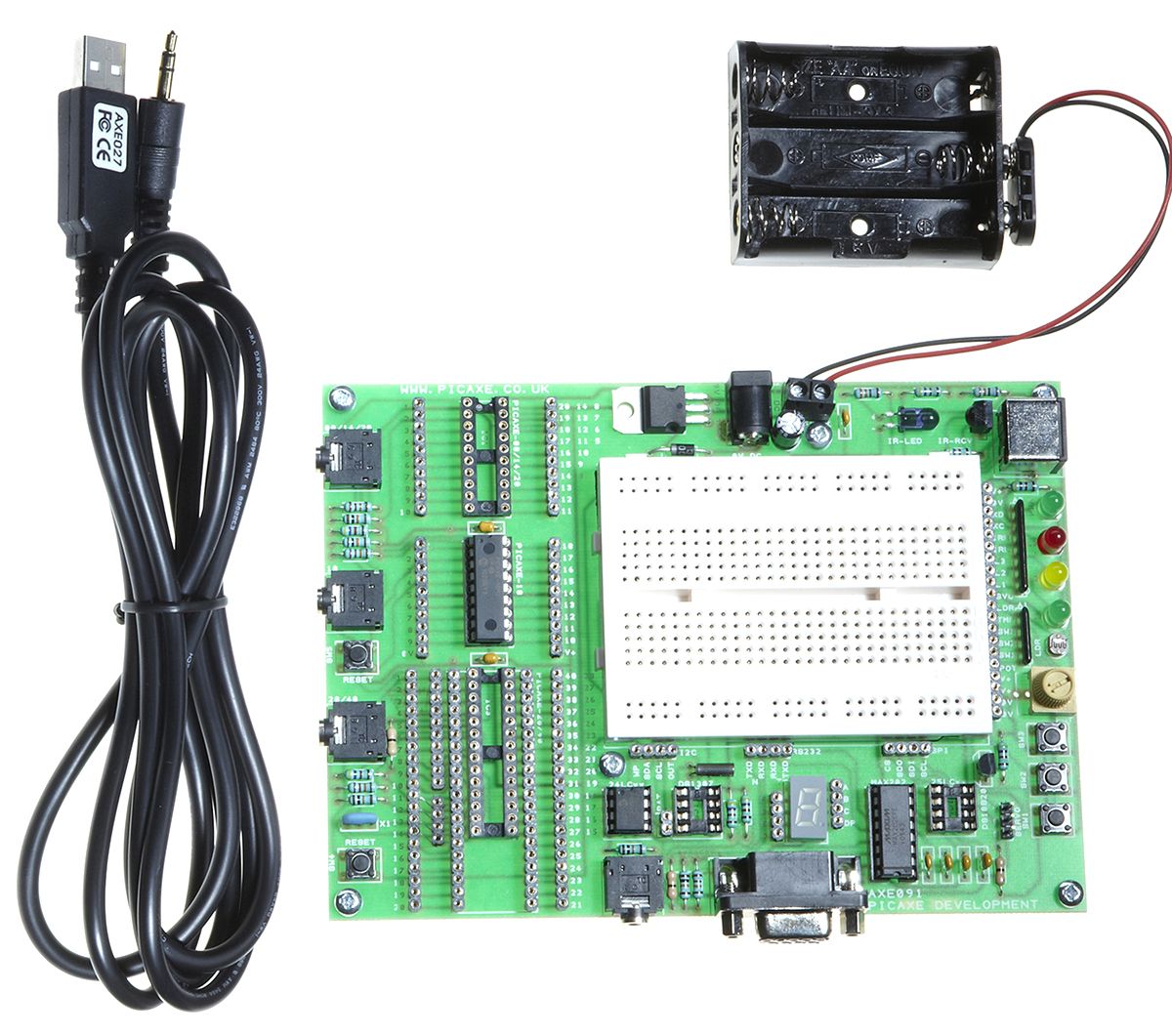

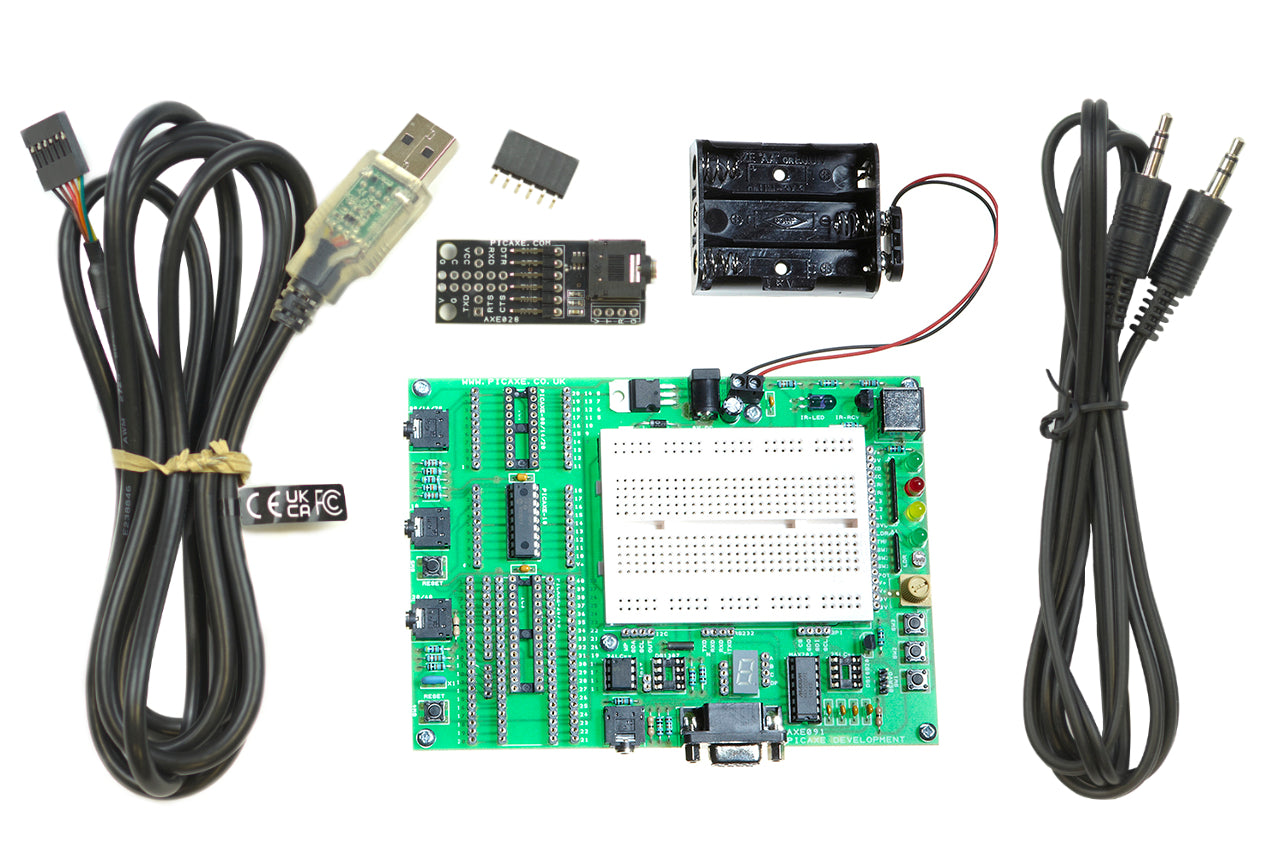

This PICAXE Experimenter Starter Pack is a very versatile bundle for anyone eager to get started experimenting with PICAXE right away. The kit comes with a PICAXE-18M2 and download cable, but the open design let's you use any of the PICAXE chips, sold separately. See details about the programming cable options here.

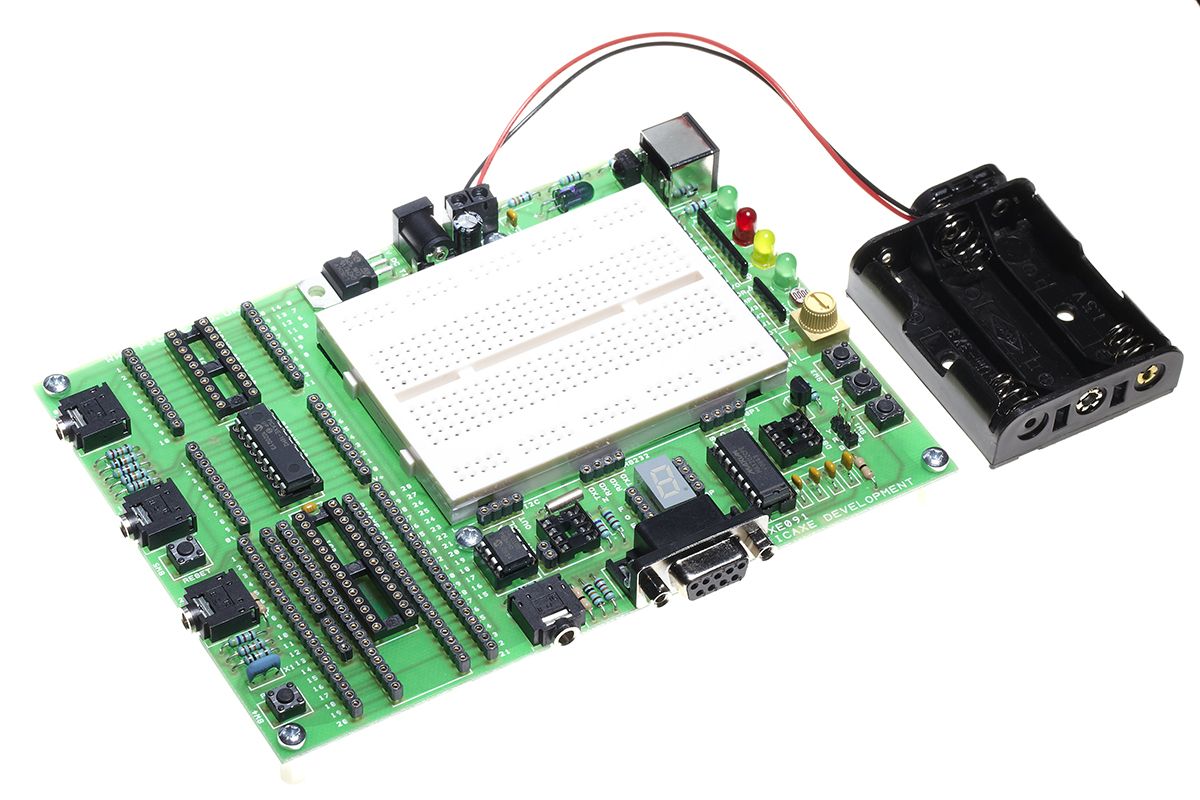

The board is supplied fully assembled with:

  • 3 LED indicator outputs.
  • 3 Digital switch inputs.
  • LDR and preset resistor analogue inputs.
  • DS18B20 digital temperature sensor
  • Infra red sensor
  • LED output
  • Keyboard connector
  • Serial (inverted and true (MAX202 buffered))
  • RS232 connectors
  • Sockets for I2C and SPI memory chips (sold separately)
  • Socket and battery connector position for DS1307 Real Time Clock(sold separately)

The board can be powered via batteries (battery box included), or an external power supply (sold separately), and the board has onboard regulated power supply, with LED power indicator.

Product Datasheet (PDF)

View full details
