PICAXE-20X2 Starter Pack

This PICAXE-20X2 Starter Pack is a self-assembly kit, based on the PICAXE-20X2 Microcontroller. See details about the programming cable options here.

The starter pack is targeted at schools and general educational purposes, but the open design also makes it very useful for hobbyists to use it as a project board, or for any one who wants to self study, or learning by experimenting.

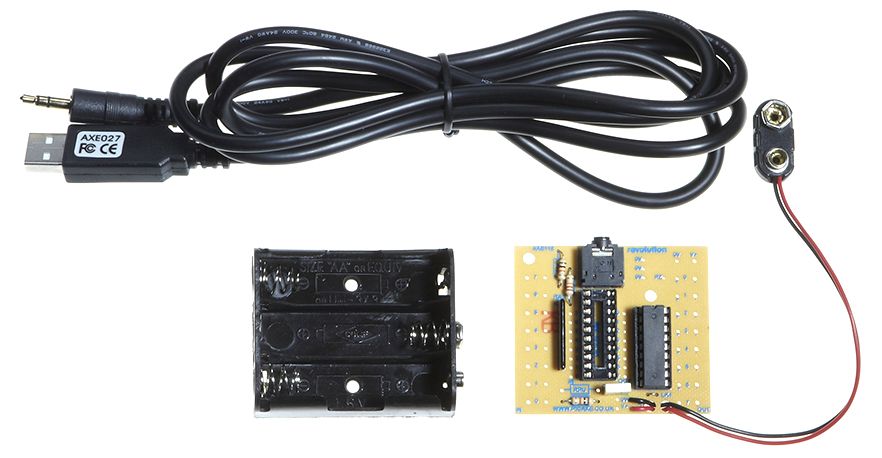

The PICAXE-20X2 Starter Pack includes both a training board, PICAXE-20X2 microcontroller, download cable and a battery box. The software needed is free, so all extra you need to get started, is a computer and batteries. Furthermore, free training resources and tutorials are provided in the PICAXE manual (Part 1 - Getting Started).

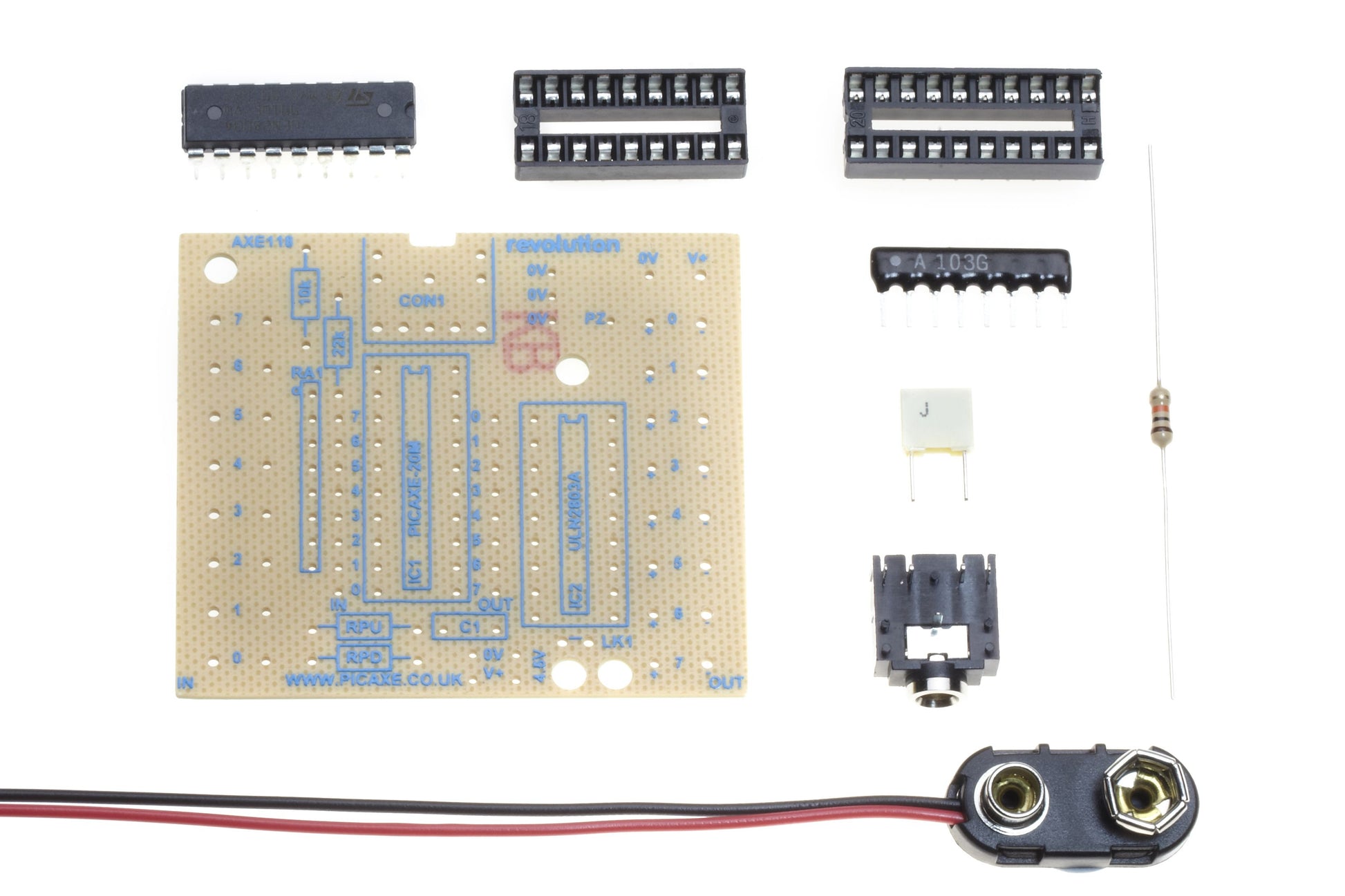

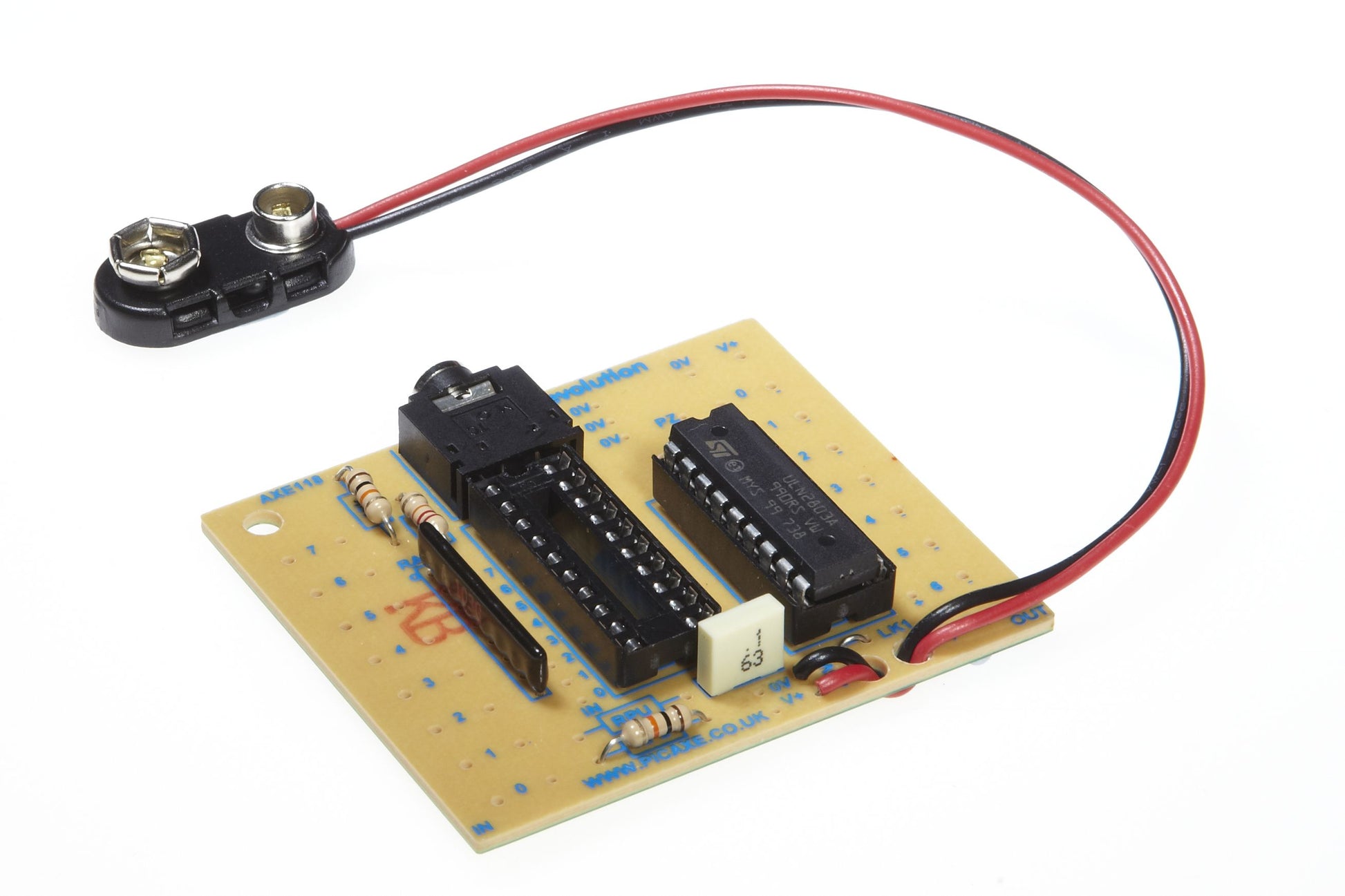

 The project board comes with assembly instructions, and when completed, the board will contain the following:

• PICAXE-20X2 microcontroller
• IC socket (to easily replace the PICAXE-20X2 microcontroller)
• All necessary extra components for the PICAXE-20X2 to operate
• Darlington driver buffer chip, that enables you to connect higher power output devices (such as motors, solenoids, relays) directly to the board (current up to 500mA)
• 3.5mm cable connector

This starter kit can be used with any software application that supports the PICAXE hardware, including the free PICAXE Editor 6
