PICAXE-18M2 Starter Pack

PICAXE-18M2 Starter Pack


Regular price £24.99 GBP (£20.82 exc.VAT)
Regular price Sale price £24.99 GBP (£20.82 exc.VAT)
Sale Sold out
VAT is removed for export orders.

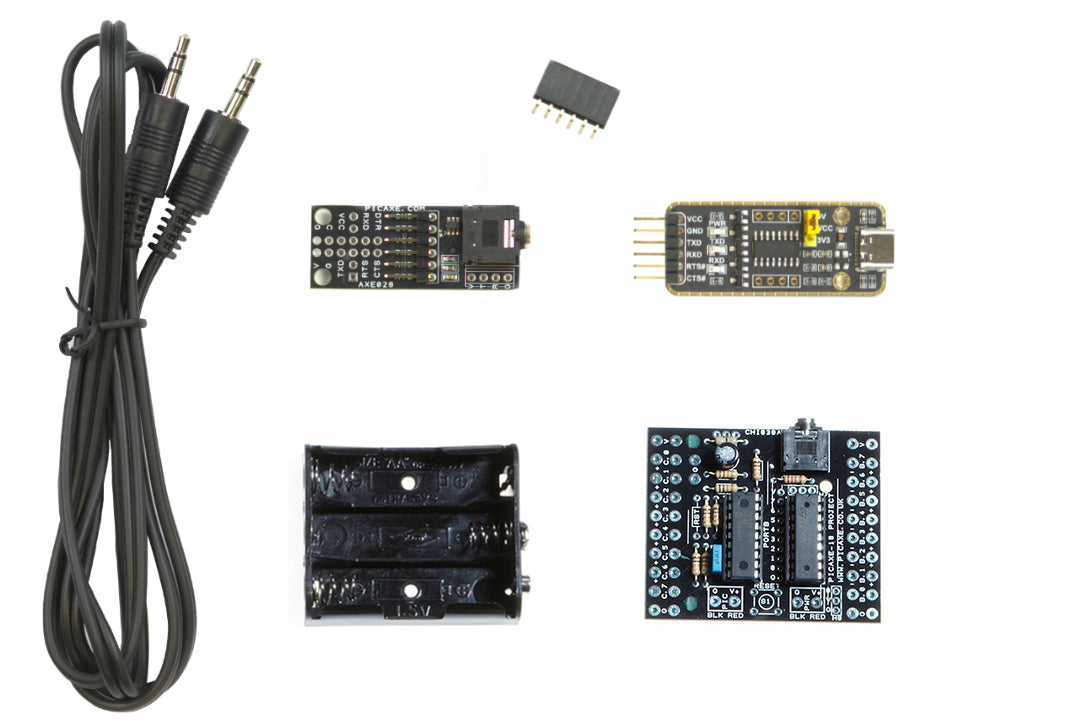

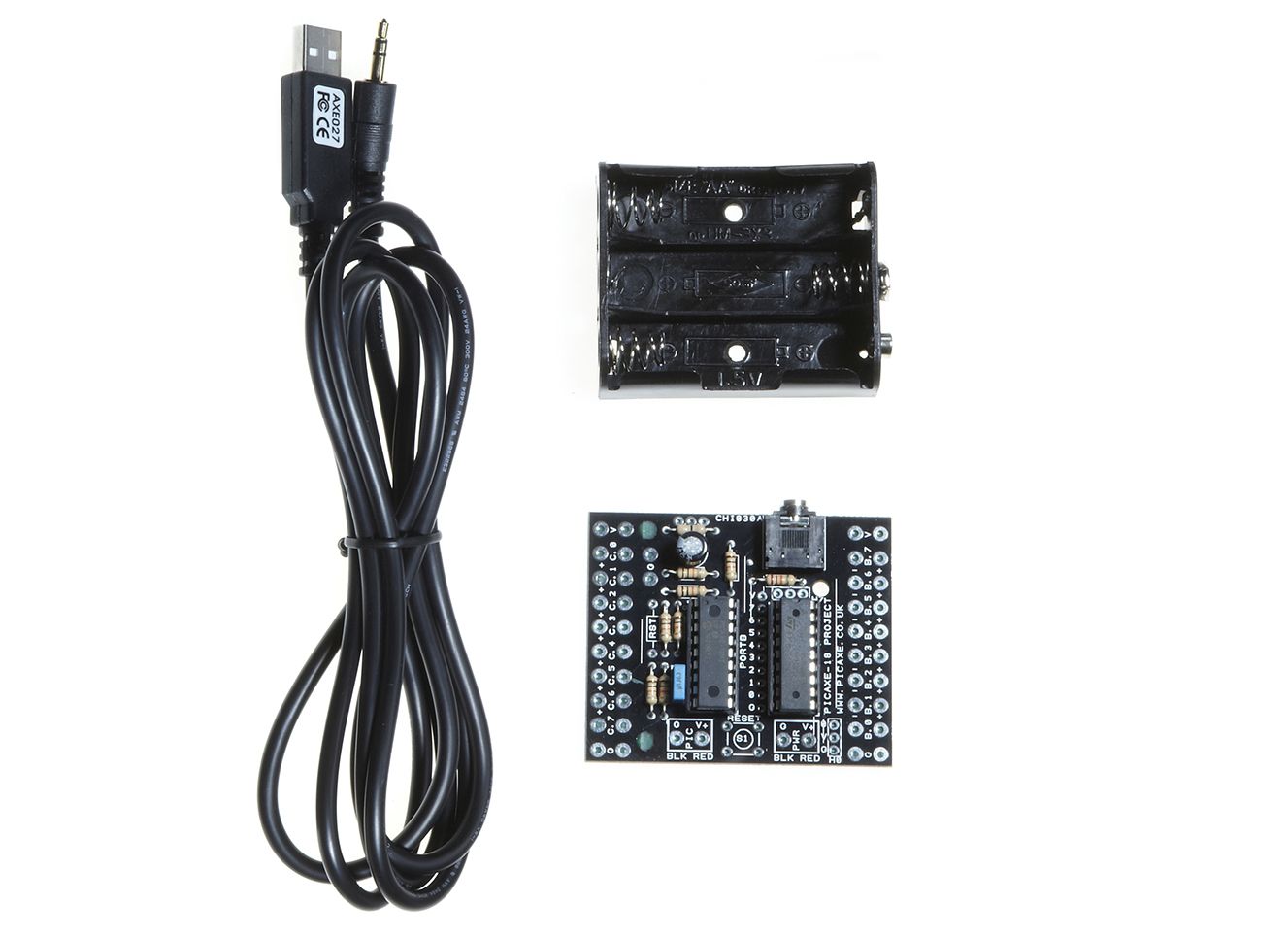

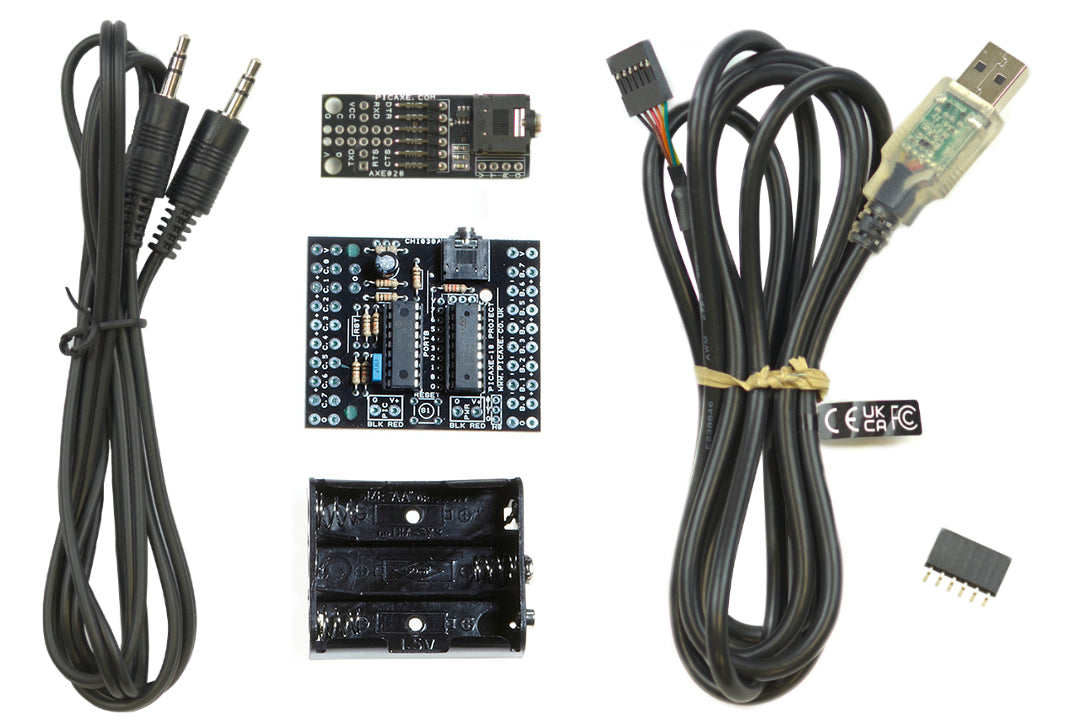

This PICAXE-18M2 Starter Pack is a bundle including the pre assembled PICAXE-18 Standard Project Board (CHI030), AXE027 download cable, a battery box, and all software and documentation.

All extra you need to get started, is a computer and batteries. Furthermore, free training resources and tutorials are provided in the PICAXE manual (Part 1 - Getting Started).

The training board comes assembled, and is ready for use with all the PICAXE-18M2's analogue and digital inputs and outputs.

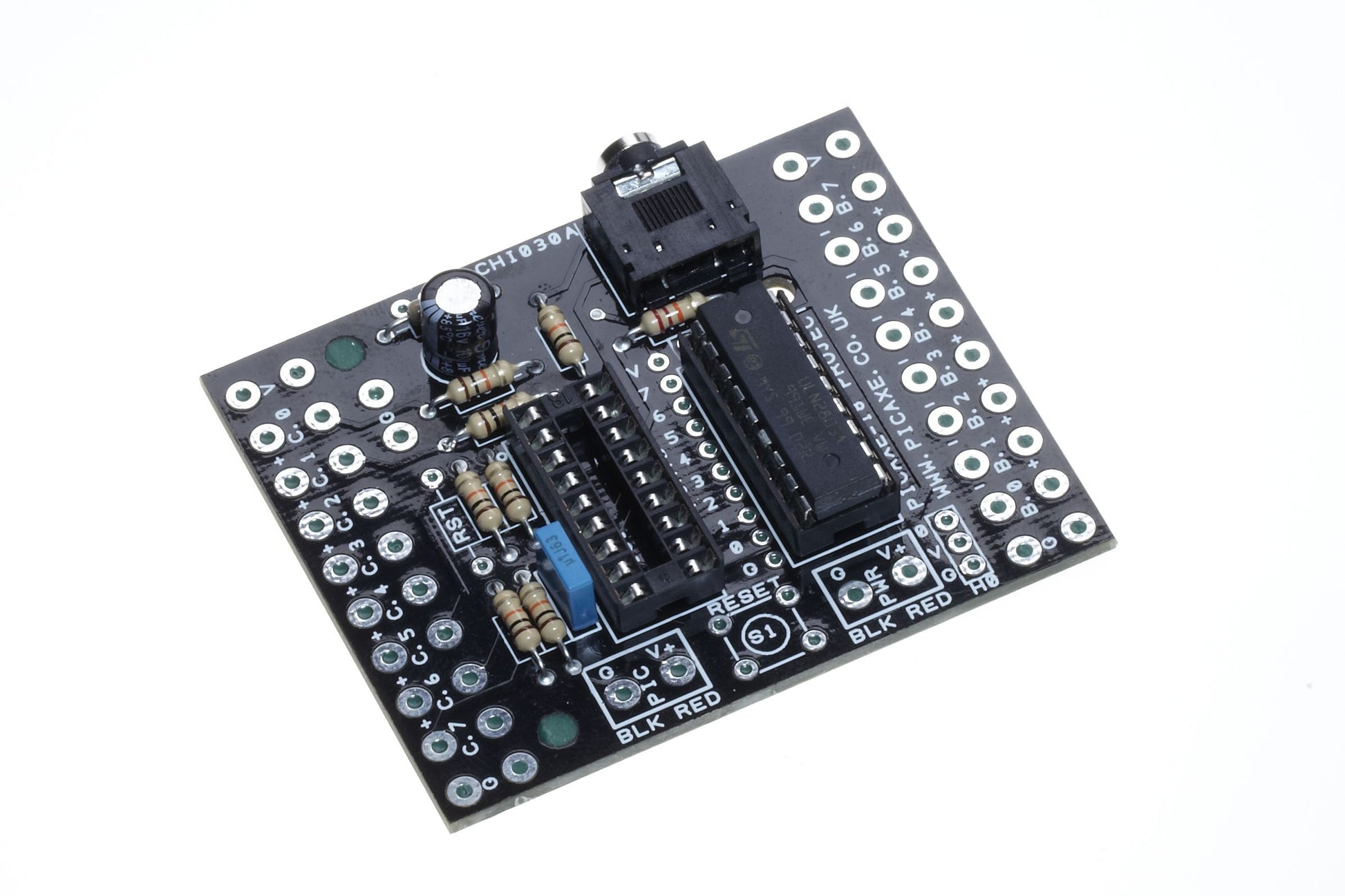

 Key features of the PICAXE-18 Standard Project Board (CHI030):

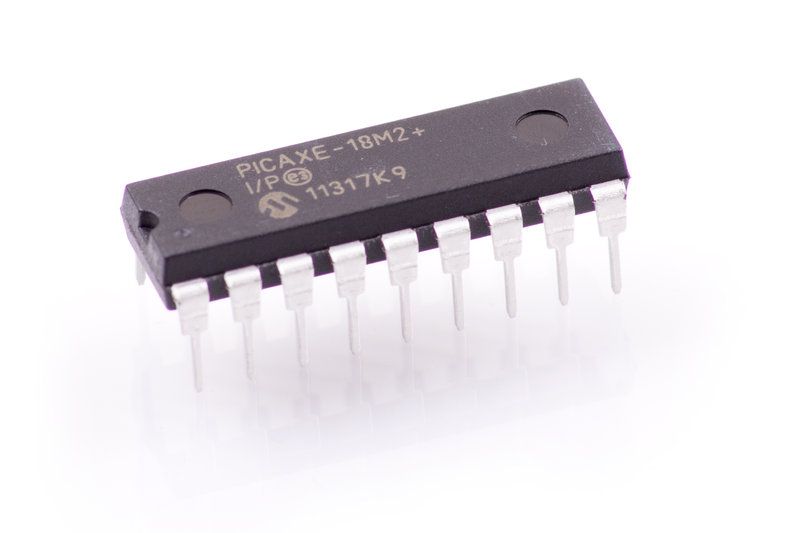

  • PICAXE-18M2, and all necessary extra components for thePICAXE-18M2 to operate. The board can also be modified to operate with older versions of the PICAXE-18 -series.
  • IC socket (to easily replace the PICAXE-18M2)
  • Darlington driver buffer chip, that enables you to connect higher power output devices (such as motors, solenoids, relays) directly to the board (current up to 500mA)
  • The board is prepared to solder wires onto directly, or to be used with screw terminal blocks (sold separately)

This starter kit can be used with any software application that supports the PICAXE hardware, including the free PICAXE Editor 6

Product Datasheet (PDF)
